Dashboard Module

Real-time configurable visualizations of OEE, equipment performance, and quality metrics. Migrating from DevExpress to embedded Grafana in the rewrite.

DASH · MES

Interactive Product Demo

Scroll to walk through Dashboard Module

SHIFT LOG 01

ANALYTICS 02

EXCEPTIONS 03

DRILL-DOWN 04

DASH · MES

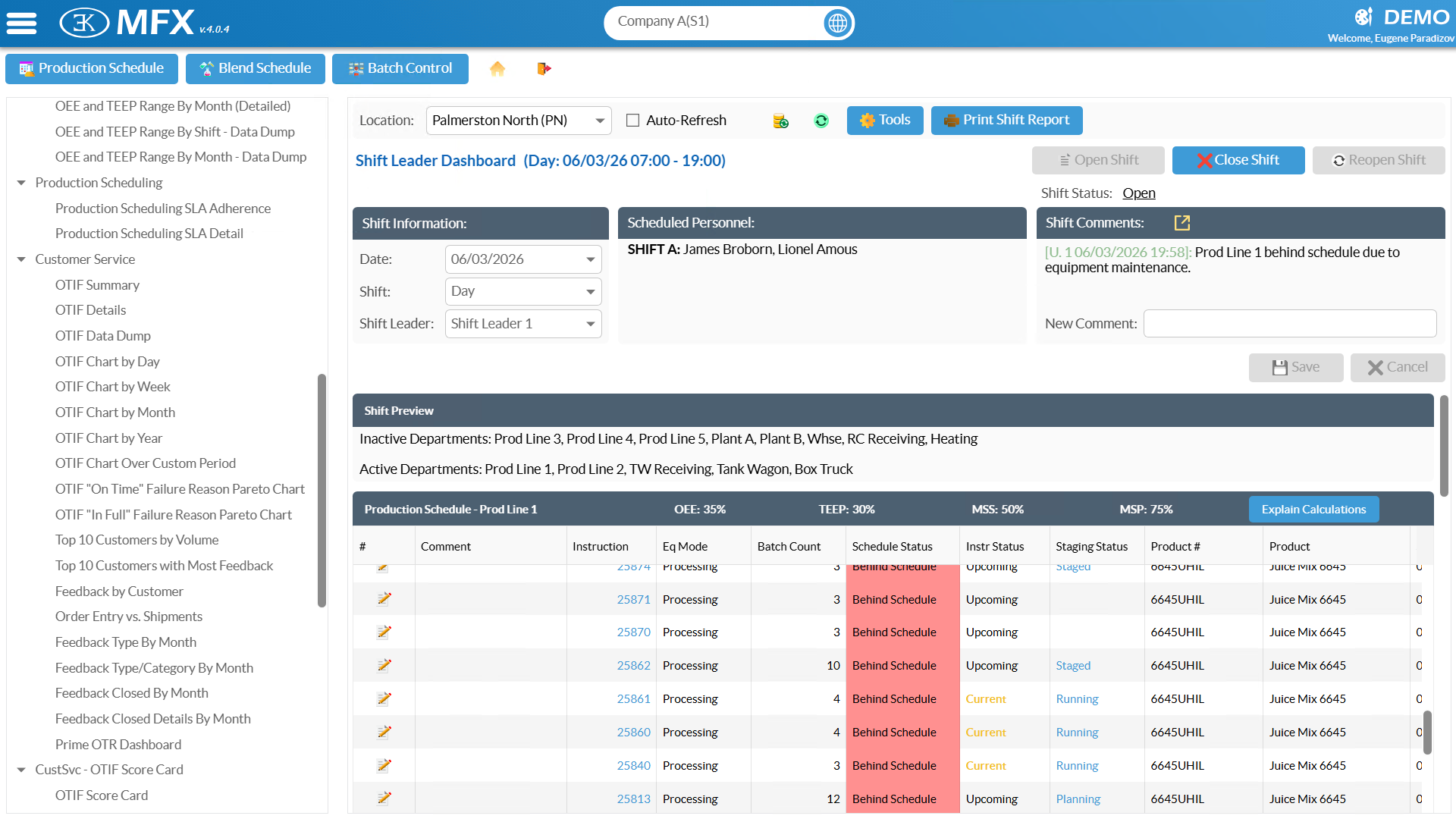

Live Shift at a Glance

Open, monitor, and close each shift from one structured grid — scheduled vs. actual across every line, with inline comments saved directly to the shift record.

81 Dashboards, Zero Setup

81 pre-built XML analytical dashboards cover OEE, OTIF, and QC Right-First-Time — pre-calculated, date-filterable, and drill-down ready without any BI tool.

Deviations Caught Overnight

Every morning a nightly job surfaces PS, BS, LLOG, and QC deviations as a dated exception list — each one trackable from Open through Acknowledged to Resolved.

Batch and Sample Detail

Click any shift log row to open batch or sample popups — job status, QC results, and tank assignments — without navigating away from the shift view.

Dashboard Module

Real-time configurable visualizations of OEE, equipment performance, and quality metrics. Migrating from DevExpress to embedded Grafana in the rewrite.

DASH · MES

What It Does

DASH is the operational layer between raw production data and the people who need to act on it. It ships pre-built with 81 analytical dashboards and structures shift handovers, daily exception reviews, and OEE reporting — without BI tool configuration or report server setup.

Shift Log

Opens each shift with every scheduled production run, blend instruction, and loading transaction pre-loaded as a structured record. Shift leaders annotate actuals, record scheduled versus actual times and quantities, and close the shift with a documented, queryable handover — not a verbal summary.

81 Pre-Built Dashboards

OEE by equipment line, OTIF delivery performance, and QC Right-First-Time rates by product and period — all pre-calculated by background jobs. No BI tool setup, no report server, no query to write. Adjust the date range and site filter; the data is there.

Daily Exceptions

A nightly job scans every production, blend, loading, and QC record for deviations: late runs, plan-vs-actual variance, unresolved quality holds. Each surfaces as a dated exception tagged to its source module (PS, BS, LLOG, QC), worked through Open → Acknowledged → Resolved with a permanent disposition comment.

Drill-Through Navigation

Clicking a Shift Log row opens the batch detail or QC sample popup inline — no navigation to a separate module. The Shift Leader Dashboard is accessible directly from Production Schedule and Blend Schedule home screens, so planners can review the prior shift as context for their scheduling work.

See DASH in Your Operation

Schedule a demo and we'll walk through Dashboard Module alongside the full MES suite — and where it fits in the AI-Native platform we're building.
